Air Springs: Working Principles, Classifications, Key Benefits and Practical Applications

Air springs, also referred to as pneumatic springs, are advanced flexible damping components widely adopted in modern mechanical and automotive systems. Unlike conventional metal springs that rely on solid metal deformation to deliver elasticity, these innovative parts utilize compressed air inside reinforced rubber structures to achieve shock absorption and load bearing. Featuring flexible stiffness adjustment, outstanding vibration suppression and strong environmental adaptability, air springs have gradually become the preferred damping solution for high-end automobiles, industrial precision equipment and rail transit systems. They effectively solve the performance bottlenecks of traditional elastic parts and support stable, low-noise and low-loss operation of various mechanical devices.

How Do Air Springs Work?

The core working principle of air springs centers on pneumatic pressure balance and volume dynamic change. Sealed compressed air serves as the elastic medium inside a flexible rubber bladder. When external loads or impact forces act on the spring, the rubber structure is compressed, shrinking the internal air volume and raising air pressure. The increased internal pressure generates a counter-support force to offset external pressure and buffer vibration. When the external load decreases, the high internal air pressure pushes the rubber bladder back to its original shape to complete automatic reset.

A unique advantage of this working mechanism is its non-linear adaptive stiffness. As the compression stroke increases, the air spring’s bearing area changes dynamically, making the overall stiffness rise moderately. This characteristic prevents rigid bottoming of the equipment under heavy loads and avoids excessive softness under light loads. Paired with intelligent air supply and height control systems, air springs can adjust internal air pressure in real time, flexibly switching bearing stiffness and suspension height to suit diverse working conditions.

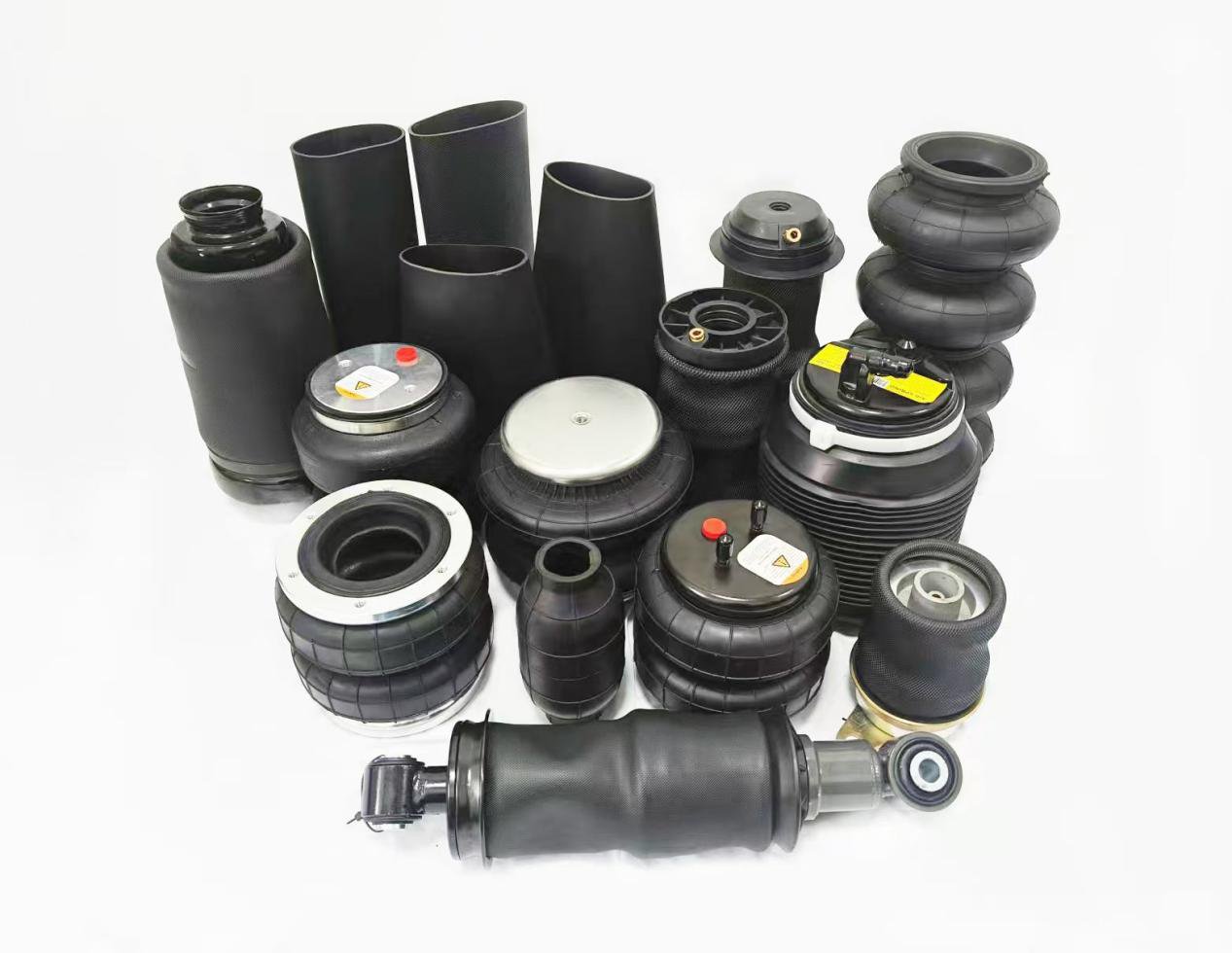

Common Types of Air Springs

Based on structural design and mechanical properties, air springs used in commercial and industrial scenarios are mainly divided into three categories, with each type designed for specific application needs:

1. Convoluted Air Springs

Convoluted air springs, or bellows air springs, are the most versatile and widely used type. They are available in single, double and triple convolution structures to meet different stroke and load requirements. This type features a simple and durable structure, large deformation stroke and excellent axial bearing capacity, and can withstand a certain degree of lateral pressure. It performs exceptionally well in eliminating high-frequency vibration, making it ideal for industrial vibration isolation bases, commercial vehicle auxiliary suspensions and hydraulic lifting equipment.

2. Rolling Lobe Air Springs

Rolling lobe air springs adopt a special rolling rubber structure with ultra-low lateral stiffness and stable linear motion. Compared with convoluted types, they produce almost no friction during stretching and compression, ensuring high motion accuracy and long service life. Their stable and smooth damping performance makes them perfect for high-precision scenarios, including luxury passenger car suspensions, rail vehicle bogies and laboratory precision testing instruments.

3. Sleeve-Type Air Springs

Sleeve-type air springs feature an integrated compact design with small overall dimensions and excellent air tightness. They are highly adaptable to narrow installation spaces that cannot accommodate large bellows structures. Mostly applied in miniature mechanical equipment, automotive seat shock absorption and small precision vibration isolation systems, they provide stable and lightweight damping support for compact devices.

Unique Advantages of Modern Air Springs

Against traditional metal coil springs and leaf springs, air springs show comprehensive performance superiority, which explains their growing popularity in high-end manufacturing and automotive industries:

1. Customizable Stiffness and Load Adaptability

Air spring stiffness and load-bearing capacity can be precisely adjusted by modifying internal air pressure. It maintains consistent supporting performance under no-load, medium-load and full-load conditions. This completely fixes the common defect of traditional springs — stiff and bumpy under light loads, soft and unstable under heavy loads — greatly improving equipment stability and operation comfort.

2. Superior Vibration and Noise Reduction

Compressed air medium has natural high-frequency vibration absorption properties. Air springs can isolate over 90% of micro and high-frequency vibrations generated during mechanical operation, far exceeding the damping efficiency of metal springs. Meanwhile, they reduce mechanical friction and operating noise effectively, creating a stable and quiet working environment for precision equipment and vehicles.

3. Durable Performance and Low Maintenance

Manufactured with high-strength rubber and fiber-reinforced composite materials, modern air springs possess great resistance to aging, corrosion and fatigue. Without rigid metal friction components inside, they suffer minimal wear during long-term operation. The low failure rate eliminates frequent maintenance and replacement, effectively reducing the overall operating cost of equipment and vehicles.

4. Stable Natural Vibration Frequency

Benefiting from non-linear elastic characteristics, air springs keep the system’s natural vibration frequency nearly unchanged despite varying loads. This stable frequency effectively avoids mechanical resonance, prevents structural damage caused by long-term resonance vibration, and guarantees long-term safe and stable operation of mechanical systems.

Main Application Fields

1. Automotive Manufacturing

Air springs are core components of modern automotive air suspension systems. They are widely equipped on luxury cars, buses, logistics commercial vehicles and recreational vehicles. By intelligently adjusting suspension height and damping stiffness, they optimize driving comfort, improve road holding ability, and adapt to variable cargo weights and complex road conditions.

2. Industrial Precision Vibration Isolation

In precision manufacturing and laboratory industries, air springs serve as vibration isolation bases for CNC machine tools, laser processing equipment, optical instruments and medical detection devices. They block external ground vibration interference, ensuring ultra-high processing precision and detection accuracy of sophisticated equipment.

3. Rail Transit & Engineering Vehicles

Subways, high-speed trains and various engineering vehicles adopt air spring suspension systems. The flexible damping effect buffers driving jolts, reduces wheel and track wear, improves passenger comfort, and extends the service life of vehicle chassis components.

4. Civil and Lifting Equipment

Air springs are also widely used in lifting platforms, mechanical shock absorption supports, intelligent medical beds and office automation equipment. They deliver stable lifting buffering and efficient vibration isolation, optimizing the service performance of various civil and industrial auxiliary equipment.

Future Development Trends

With the rapid development of intelligent manufacturing and new energy industries, air spring technology is evolving toward intelligence, lightweight and high precision. Combined with IoT sensors and automatic control modules, new-generation air springs can realize real-time pressure monitoring, active vibration adjustment and intelligent height calibration. In addition, upgraded composite rubber materials greatly enhance product resistance to high and low temperatures, abrasion and aging, enabling air springs to meet the stricter performance standards of new energy vehicles, intelligent industrial equipment and high-end precision manufacturing fields.

Conclusion

As a revolutionary alternative to traditional metal elastic components, air springs break through multiple performance limitations of conventional springs with adjustable stiffness, efficient vibration isolation, strong adaptability and low maintenance costs. They have become indispensable core parts in automobiles, industrial equipment and rail transit fields. With continuous material innovation and intelligent technology iteration, air springs will enjoy broader application prospects and play a more critical role in the upgrading of modern high-end manufacturing industries.
